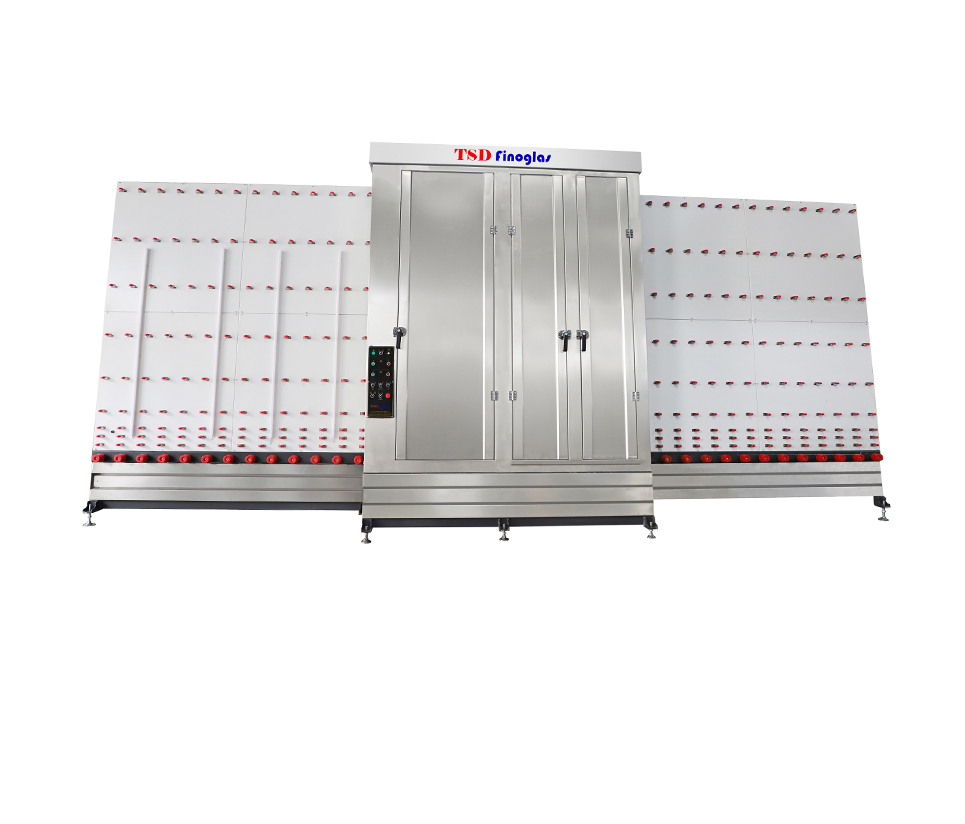

Vertical Washing

Vertical glass washing machine is mainly vertical type, used in washing and drying glass.

Description

Separate washing spray room

4 sets water spraying + 2 sets air knifes

Low noise, energy saving, save space, long service life, easy to operate.

Machine details display

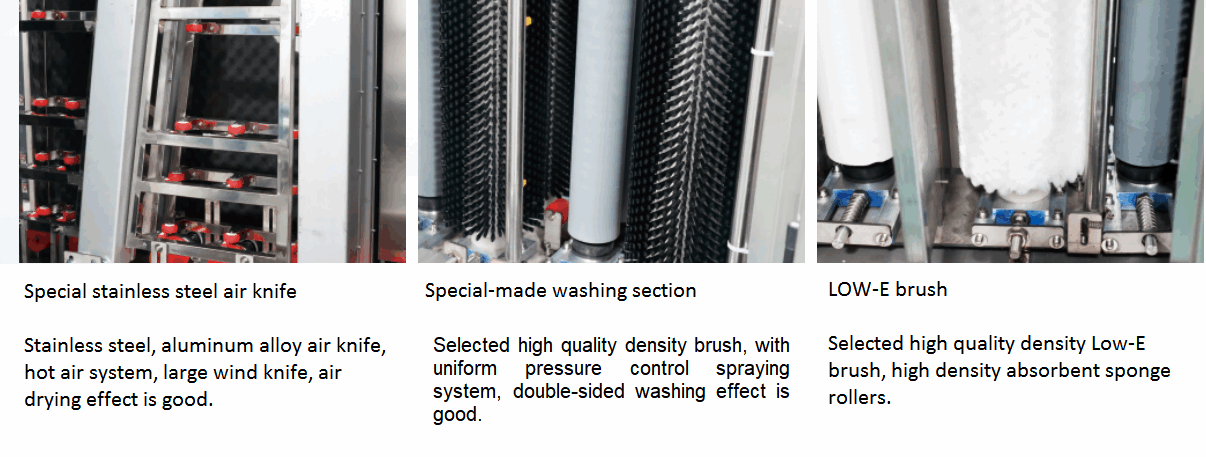

01

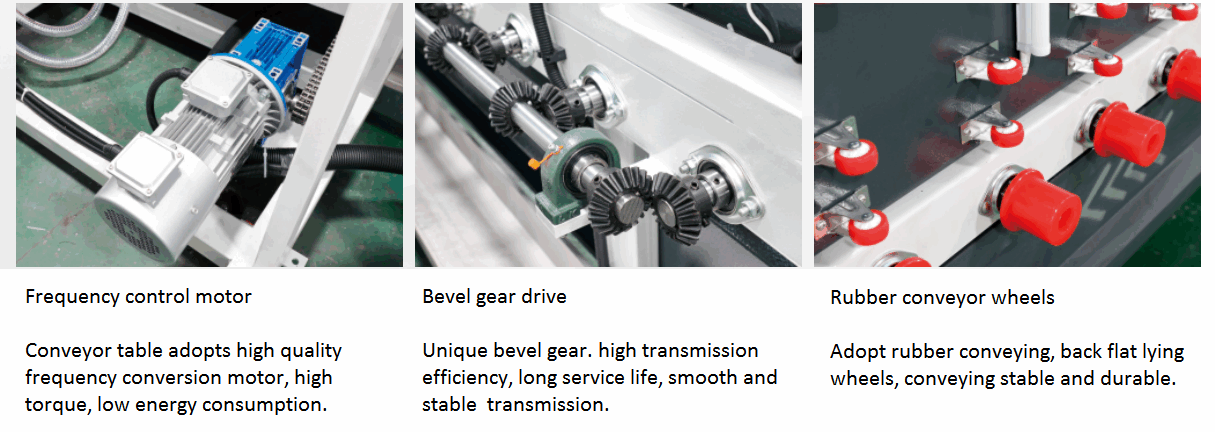

Vertical Washing02

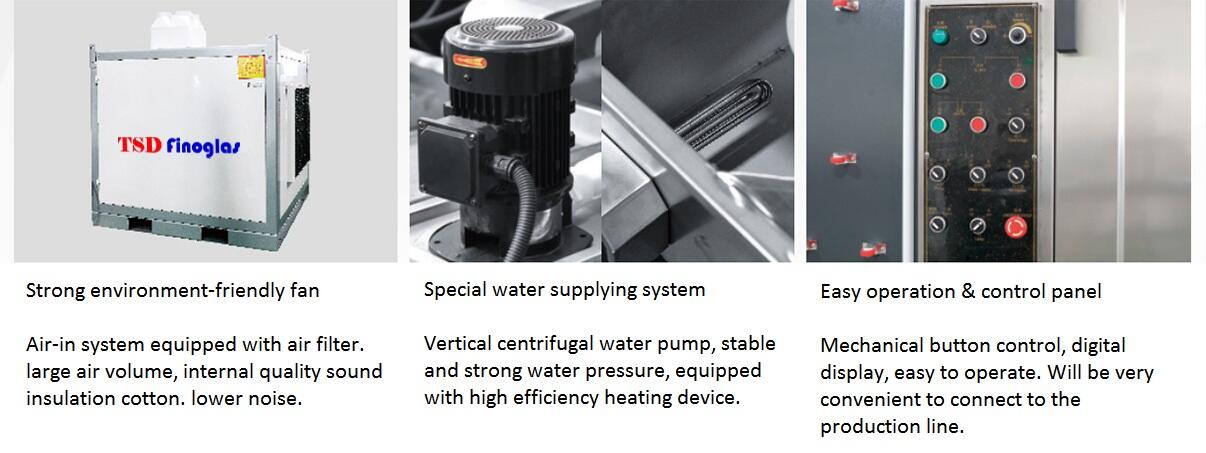

Vertical Washing03

Features

Suitable for hollow, doors and Windows, laminated, fireproof curtain wall, building, furniture and shower room and other fields.

Easily deal with washing and drying of 3-12mm glass thickness, LOW-E glass, ordinary coated and sunlight coated glass, etc.

Washing box is made of thick stainless steel by whole welding to ensure the body strength and no deformation.

2 washing sections + 4 sets water spraying + independent water spray room, glass washing clear and fast.
Special air knife design configuration, strong wind power, with heating system, unique circulating air drying system, energy-saving and low noise.

Parameter Data

VQX-1600mm

VQX-2000mm

VQX-2500mm

VQX-3000mm

Feeding speed (m/min)

0-8

0-8

0-8

0-8

Max glass width (mm)

1600

2000

2500

3000

Min. Glass size (mm)

500*300

500*300

500*300

500*300

Thickness (mm)

3-12

3-12

3-12

3-12

Table height (mm)

750+20

750+20

750+20

750+20

Power (KW)

24

28

31.5

35

Machine size (mm)

6600x2600x2700

6600x2600x3100

6600x2600x3600

6600x2600x4100

Weight (kgs)

2100

2500

3000

3500
