Vertical Beveling

Suitable for beveling various sizes flat glass.

The rough grinding, fine grinding, polishing and bottom edge process are finished at one time.

The front pressing plates can be adjusted up and down according to the glass size. All the rear pressing plates are using with thicker steel plate, which make machine more stronger, transmit steadier and in higher working precision.

Working speed adjusted by frequency motor, easy operation and high practicality.

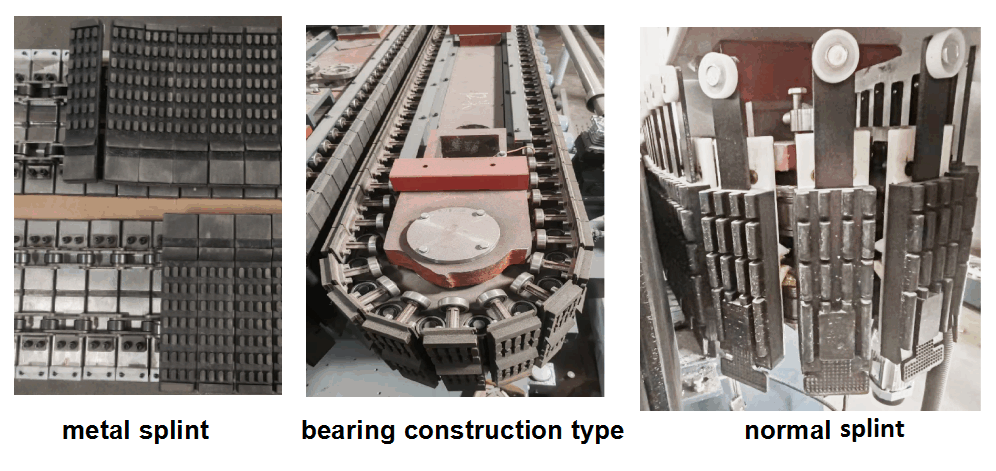

＊ To meet different needs, bearing type and normal type vertical pencil edgers are available.

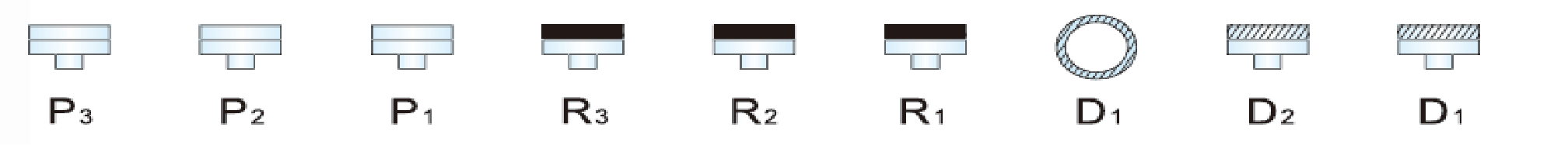

POSITION OF WHEELS

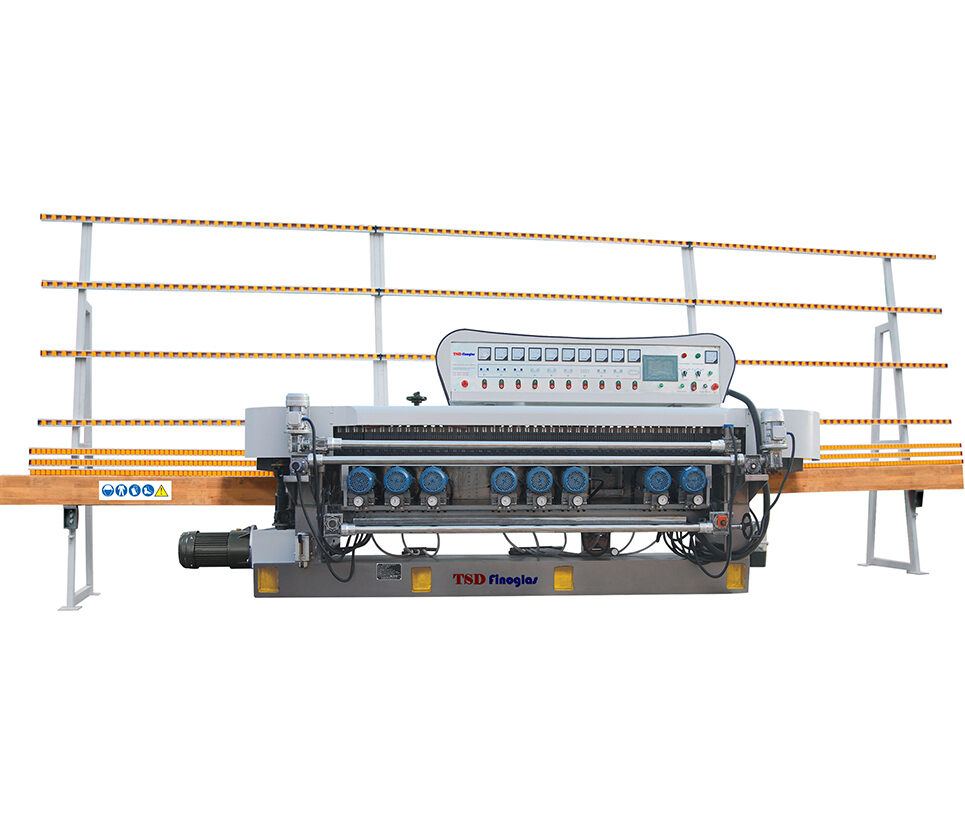

Machine construction display

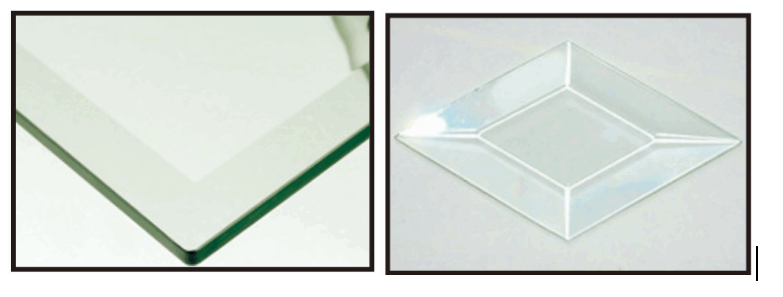

Glass edging result display

1. PLC control of processing parameters:

The equipment uses PLC (Programmable Logic Controller) to accurately control the processing thickness, angle and height of the glass.

This means that the operator can achieve precise processing of the glass edge through simple programming or settings, greatly improving the accuracy and consistency of processing.

2. Wide range of applications:

This glass beveling machine is suitable for beveling of flat glass of various sizes. Whether it is small decorative glass or large architectural glass, it can easily cope with it and meet diverse processing needs.

3. Integrated processing flow:

The equipment integrates three processing steps of rough grinding, fine grinding and polishing, and can complete the entire beveling process in one operation. This not only improves processing efficiency, but also reduces manual intervention and ensures the consistency of processing quality.

4. Adjustable front pressure plate:

The front pressure plate of the equipment can be adjusted according to the size of the glass through the lifting system. This design enables the equipment to fit closely to glass of different sizes, ensuring stability and accuracy during processing.

5. Enhanced platen design:

The platen is made of thicker steel, making the machine more durable. At the same time, the thicker steel also improves the stability of the transmission, making the equipment more accurate and reliable when working.

6. Stepless speed regulation:

The working speed of the equipment can be adjusted at will through the continuous speed change mechanism. This feature allows the operator to easily adjust the working speed of the equipment according to the processing requirements, making the operation more flexible and convenient.

7. High-efficiency motor configuration:

The equipment is equipped with 9 high-performance motors, providing strong power output to ensure the stability and efficiency of the processing process. These motors not only have the characteristics of long life and low noise, but also maintain stable performance at high speed operation, providing a strong guarantee for high-quality glass beveling processing.
