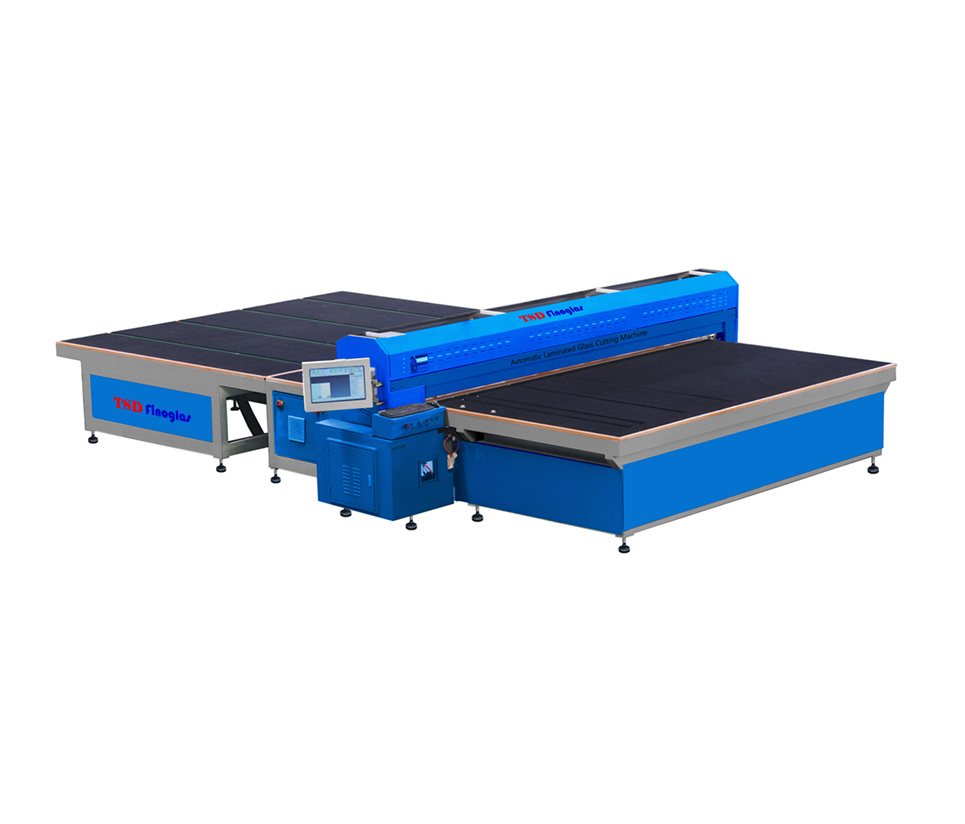

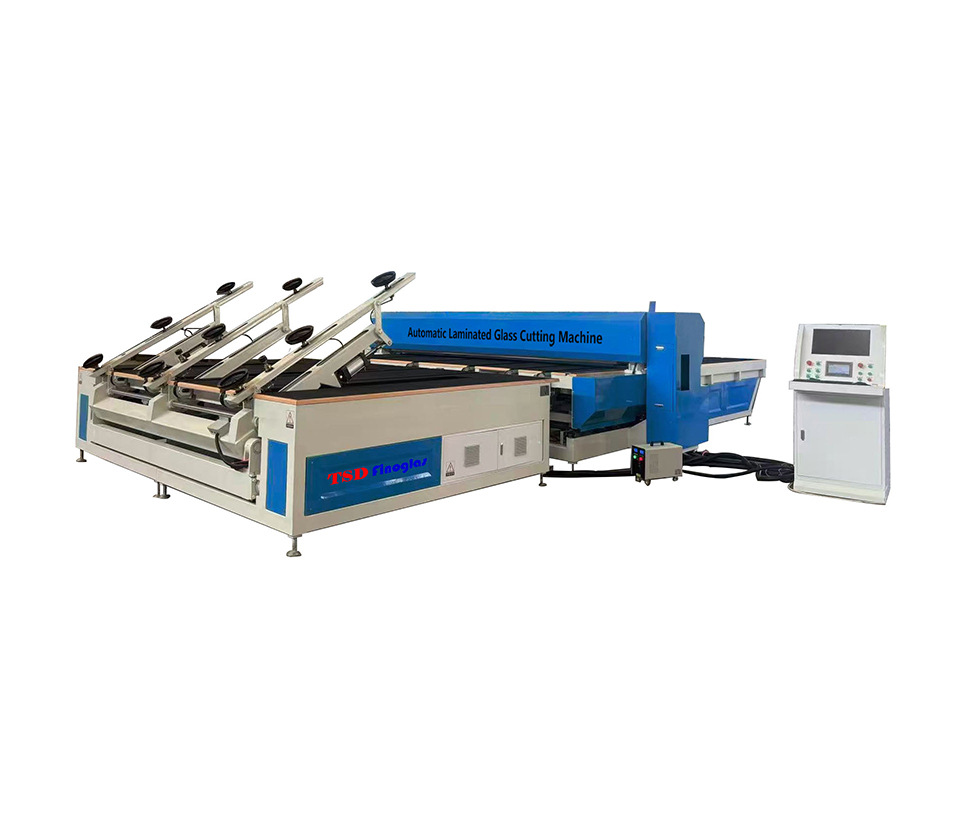

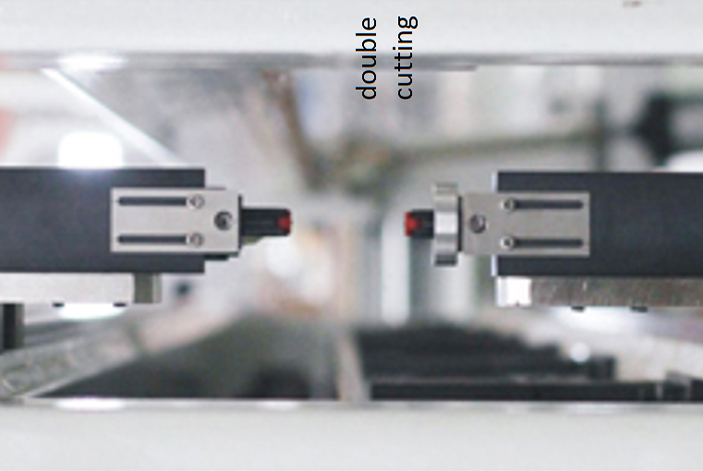

Laminated Glass Cutting

Major function

(1) Optimize layout

(2) Automatic stripping

(3) Production database

(4) High-speed quartz tube heating

(5) Belt conveyor

(6) Chinese and English interface

Basic performance

(specification 3826 as example):

Equipment size: 7000*5000*1450（mm）

Cutting the maximum length: 3700mm

Cuting the minimum length: 250mm

Glass thickness: 3+3 ~ 8+8mm

The film thickness of laminated glass: 0.38mm—1.52mm

Cutting speed: 100m/min

Glass positioning: mechanical positioning/photoelectric positioning

Work table height: 900±50mm

Total power: 15KW

Minimum air pressure: 0.8MPa

Working glass precision

• Positioning accuracy: +0.25mm

• Straight line cutting accuracy: +0.20mm

• Parallel precision: +0.25mm

• Cutting speed: 0-100m/min

Note: above accuracy is based on the accuracy of cutting process before breaking.

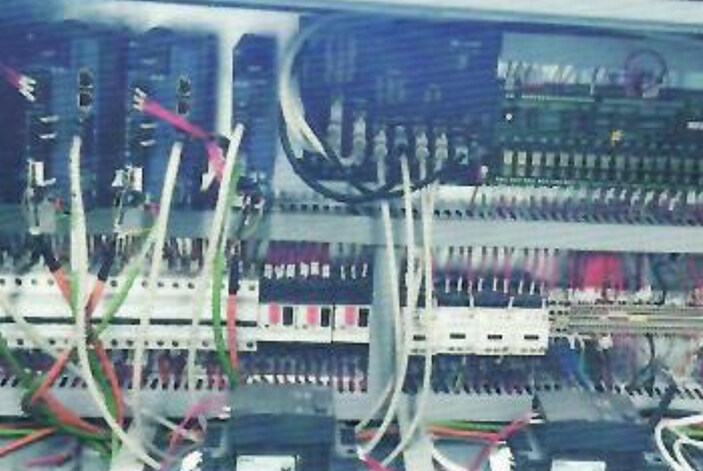

Appliance configuration

(only for reference, will be subject to final details.)

(1) GALIL Move controller

(2) Japan YASKAWA servo motor YASKAWA driver

(3) SMC Precision pneumatic controller

(4) Delta inverter

(5) Panasonic fiber amplifier

(6) OMRON switching power supply

(7) Main low voltage component Schneider
