Glass Washing-air Knife Type

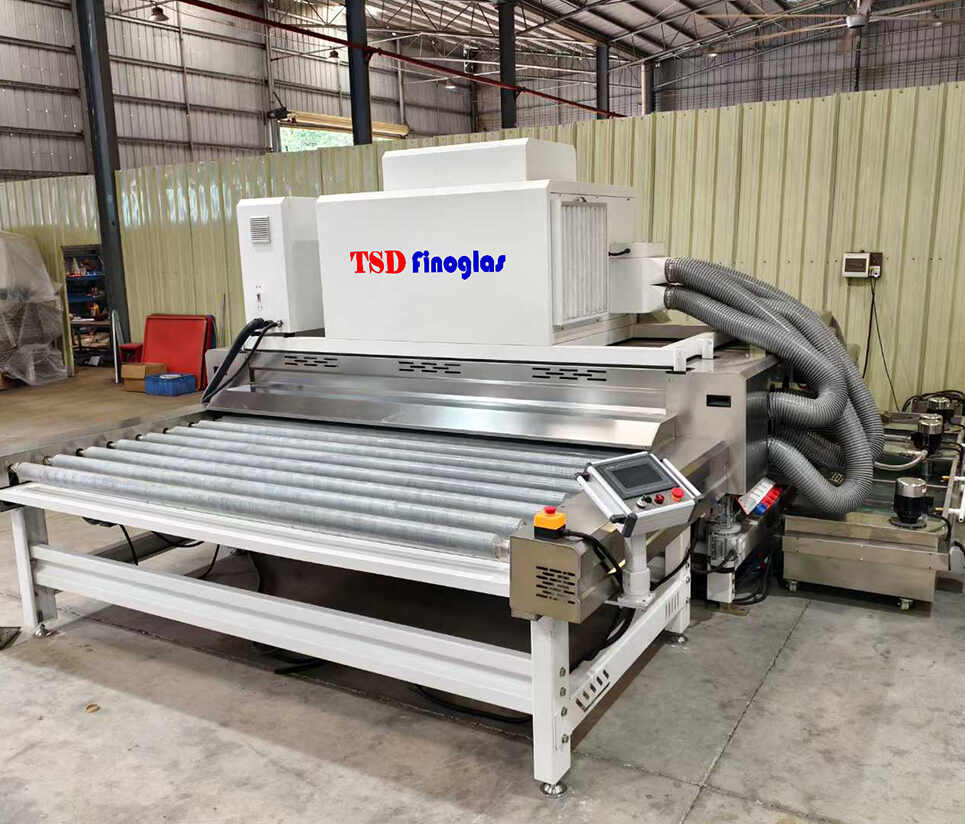

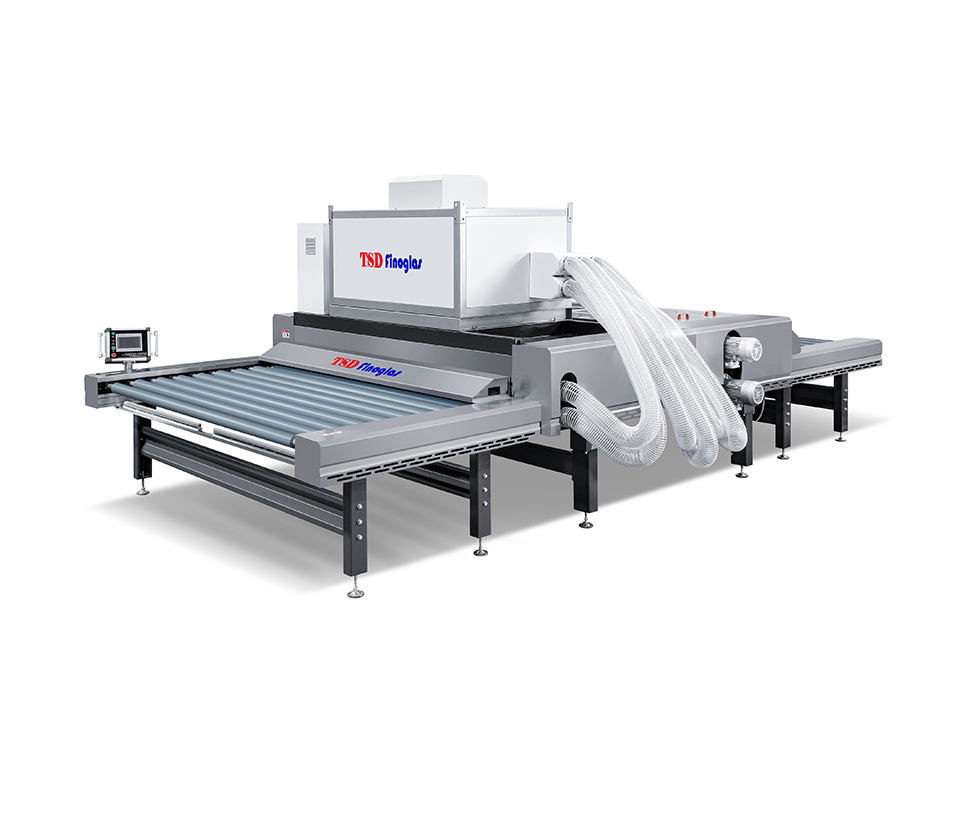

Glass Washer & Dryer Machine is used in washing and drying glass with air-knife type construction. This machine is composed of loading table (including spray system), rolling brush section (including low-E brush rollers), air drying section (2 pairs of straight air knives) and unloading table.

Description

Special two air knife drying design

All-round air drying, no water mist, no watermark

Low noise, energy saving, high efficiency, long service life, easy to operate.

Machine details display

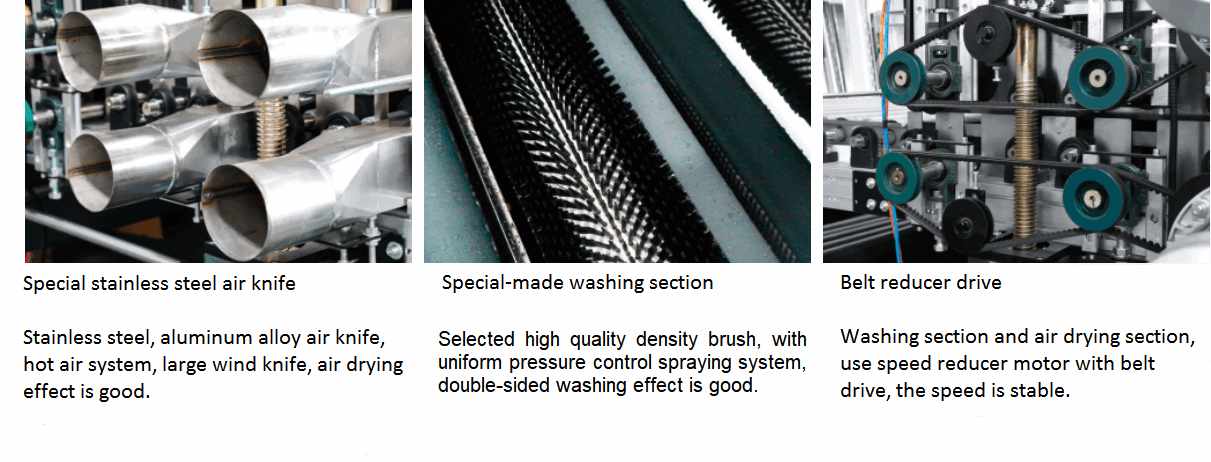

02

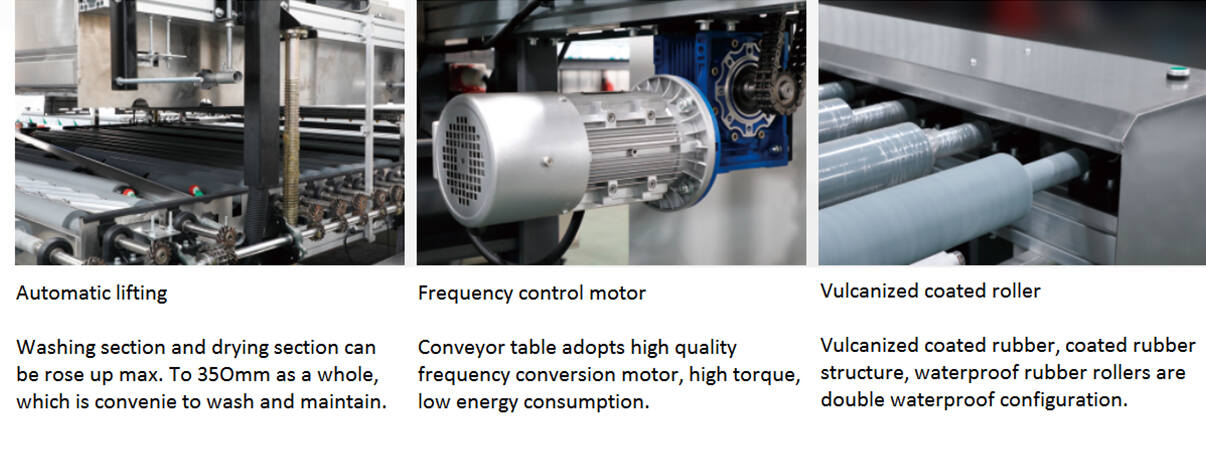

Glass-Washing-air-Knife-Type02

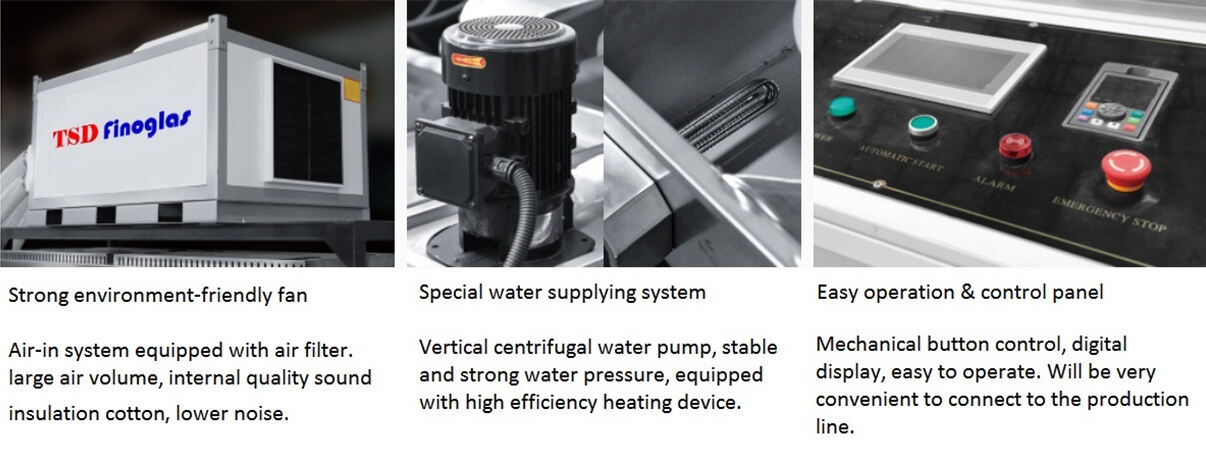

Glass-Washing-air-Knife-Type03

Features

Suitable for hollow, doors and Windows, laminated, fireproof curtain wall, building, furniture and shower room and other fields.

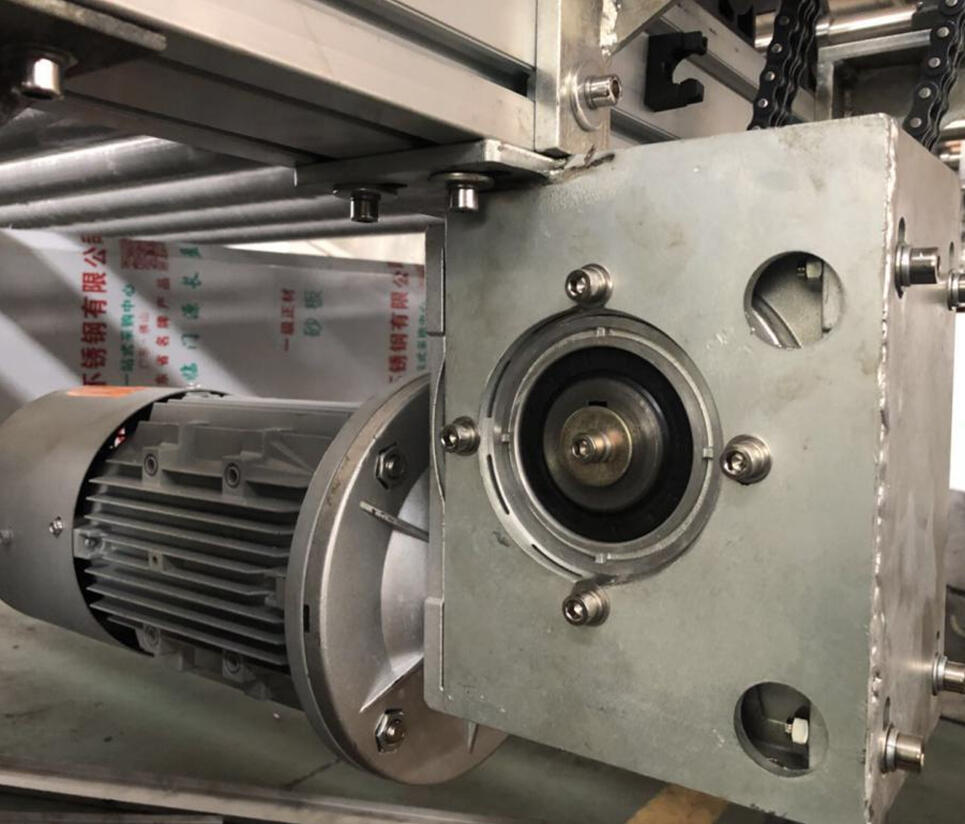

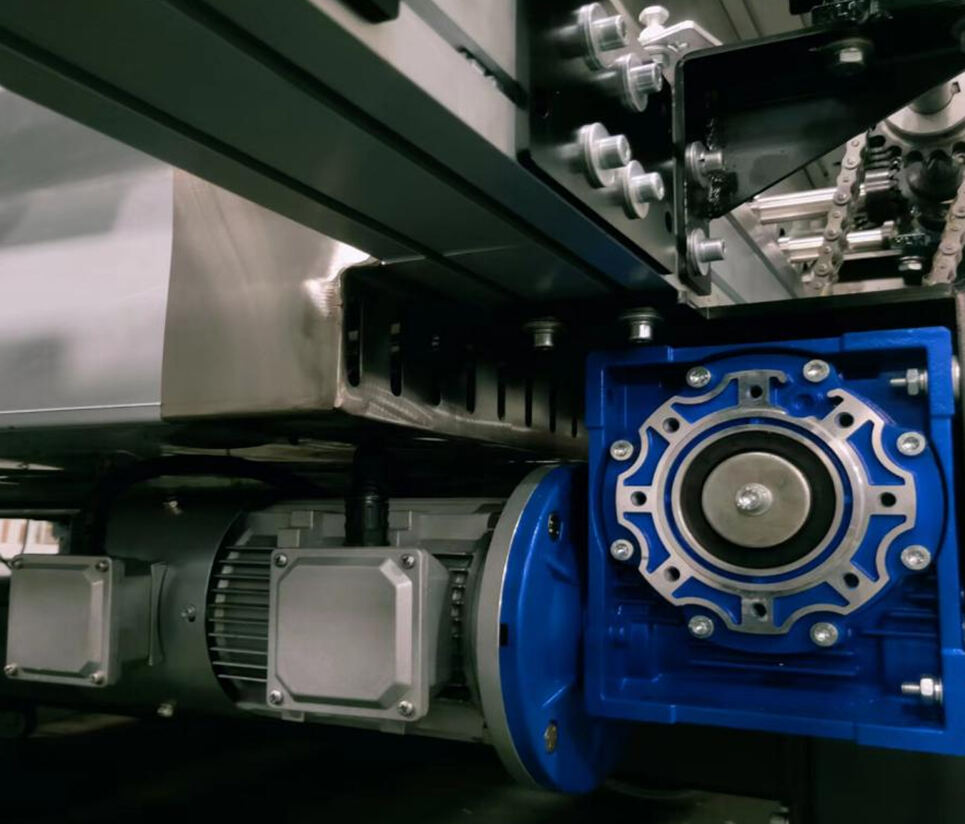

Main drive is gear drive, inverter speed control and digital display, brush roller of washing section are drove by upper and lower motor with belts, which has smooth speed and long service life.

Easily deal with washing and drying of 3-25mm glass thickness, LOW-E glass, ordinary coated and sunlight coated glass, etc.

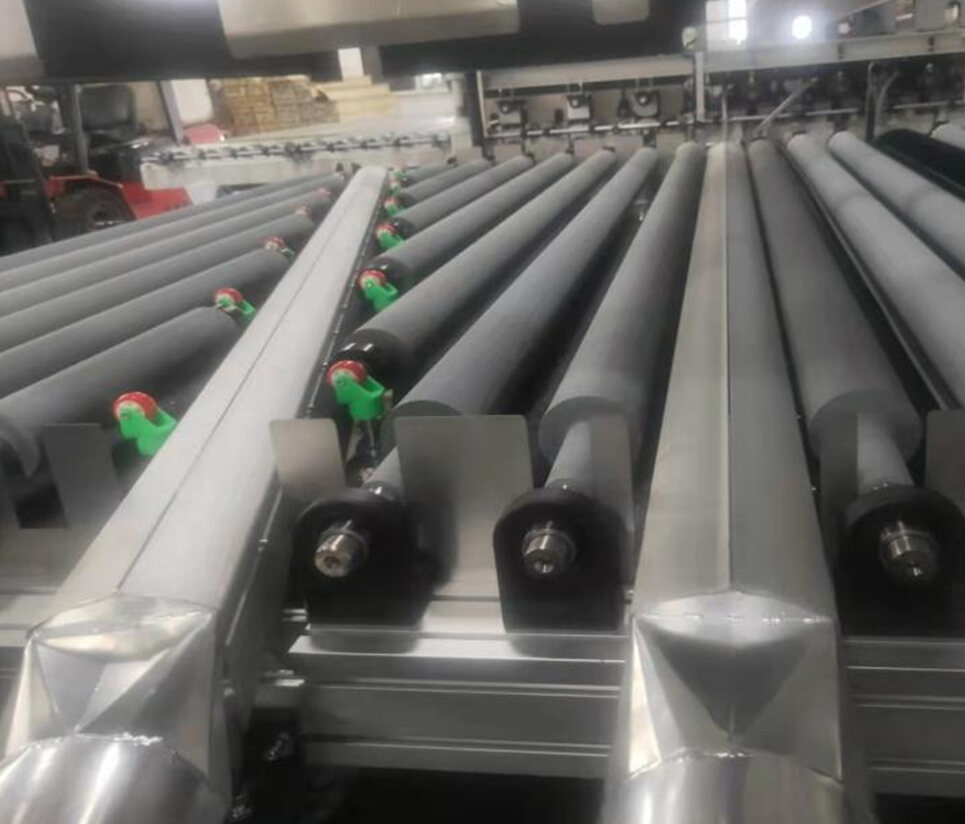

Special two air knife design configuration, large wind, with heating system, all-round air drying glass, it can achieve no water mist watermark.

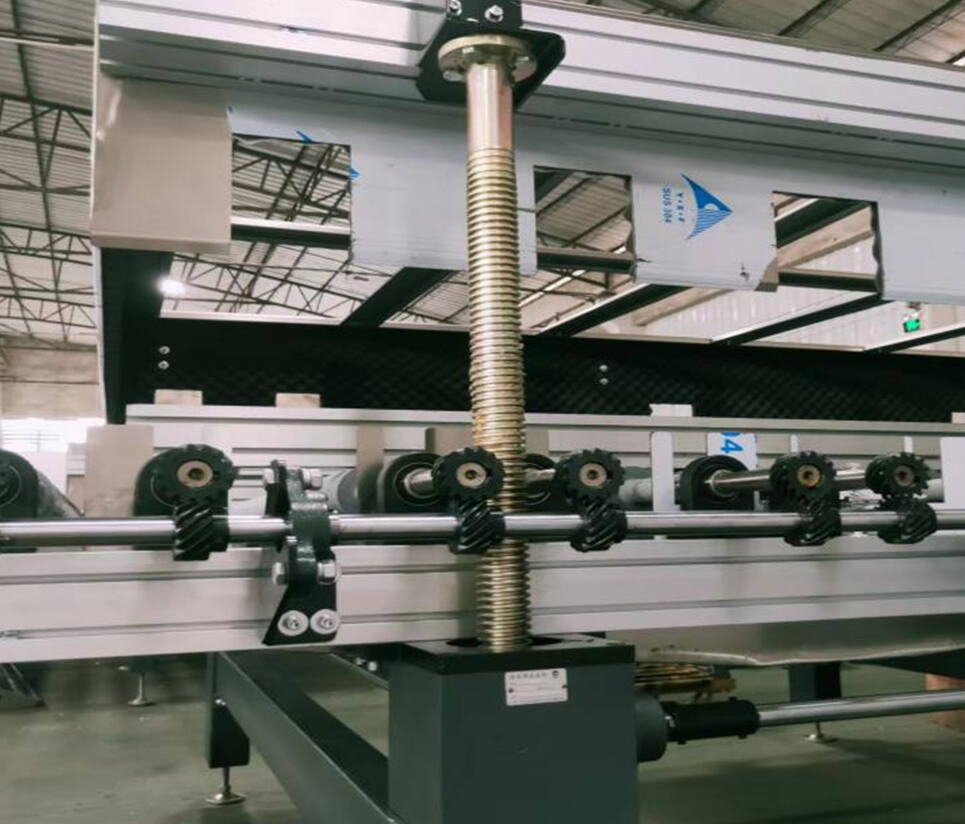

Washing section and drying section can be rose up max. to 350mm as a whole, which is convenient to wash and maintain.

Parameter Data

TQX-1700mm

TQX-2000mm

TQX-2500mm

TQX-3000mm

Feeding speed (m/min)

1.5-12

1.5-12

1.5-12

1.5-12

Max glass width (mm)

1700

2000

2500

3000

Min. Glass size (mm)

400*400

400*400

400*400

400*400

Thickness (mm)

3-25

3-25

3-25

3-25

Table height (mm)

900+20

900+20

900+20

900+20

Power (KW)

17

20

27

35

Machine size (mm)

5700x3000x2600

5700x3300x2600

5700x3800x2600

5700x4200x2600

Weight (kgs)

2500

2800

3300

3800
